Rehtek Facility

REHTEK SERVES THE CUSTOMER WITH THE LATEST IN MACHINING AND INSPECTION TECHNOLOGY

Our Facility is a SOLAR POWERED precision machine shop that cares for the environment. Our skilled personnel create parts with keen eye for details and empowered to continuously making process improvements. Everyone is empowered to make improvements. Our People Have A Voice That Speaks For The Customer.

Our clients benefit from the value of technical expertise and extensive knowledge of machining exotic materials.

Utilizing the Latest in Machining Technology and Video Metrology

We manufacture precision machine parts ranging from .005″ in diameter to 5.0 “. The Rehtek Facility and Team focus on providing parts that work for each client’s unique needs, whether it be machining with a super alloy to withstand harsh environments or for parts with as small as a 0.005″ diameter.

Most of the parts machined at Rehtek Facility range from 0.005″ to 5.0” in diameter, with tolerances of ±0.0002 inch and cross-drilled features starting at 0.008 inch in diameter.

The pressure sensor components are machined from a variety of glass-to-metal sealing alloys, including stainless steel, Kovar, 52 alloy, titanium, Inconel and exotic alloys.

These components have stringent end-user demands on finish, edges and concentricity because they need to function in
extreme environments that are subject to very high pressures, low and high temperatures, and kinetic energy.

Rehtek specializes in precision machined parts including small components for pressure sensors that control and monitor fluids and gasses. Pressure sensor parts include high-voltage contacts, connector pins, electrodes, feed-through assemblies, glass metal headers and a variety of hermetic seal components.

Rehtek — An Experienced and Reliable Machining Resource

For headers, connectors, high voltage contacts, connector pin bodies and feed-thru assemblies. Contact us to discuss your project needs.

UTILIZING THE MOST TECHNICALLY EFFICIENT CAD-CAM, ERP & MACHINING METHODS TO IMPROVE THE MACHINING PROCESS

CNC Mill Turn Twin Spindle Machining Tolerance Major Diameter
DN Solutions 2100 LYSB Multi-Task +/-.0002 5.0
DOOSAN 220 LSYC Multi-Task +/-.0002 5.0

Mori-Seki ZL-15 SMC Lathe

/-.0005 1.5

Miyano BNC-34S Twin Spindle

+/-.001 1.3125
DOOSAN 220 LSC Multi-Task +/-.0002 5.0
CNC Conventional Turning Machining Tolerance Major Diameter
Takahashi Gang Tool TNC-LO +/-.0003 1.062
Takahashi Gang Tool TNC-LO +/-.0003 1.062
Ganesh Gang Tool 32 GT +/-.0002 1.062
Moog Gang Tool +/-.001 1.5
Ikegai AX25N Turning Center +/-.001 2.5
CNC Swiss and Multi-Task Machining Tolerance Major Diameter

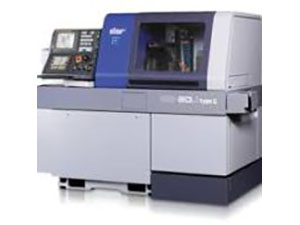

Star SR20R CNC Swiss Turning +/-.0002 .75
Star SR20RII CNC Swiss +/-.0002 .75
Star SB-16 Type D +/-.0002 .625
CNC Hybrid Swiss/Conventional Machining Tolerance Major Diameter
Swistek AB 20MM +/-.0002 .75
CNC Milling & Drilling Machining Tolerance Major Diameter
HAAS VF-2B CNC MILL +/-.001 24 x 15 x 12
Kitamura MySuper 300 Twin Pallet +/-.001 20 x 10 x 12
Kitamura Mycenter1 APC /-.001 15 x 12 x 10
Hitachi Machining Center +/-.001 20 x 12 x 12
Micro Drilling Machining Tolerance Major Diameter
Servo Micro Drilling +/-.0003 .004 to .125
Inspection Machine Tolerance Major Diameter
Mitutoyo Comparator +/-.0005 .001 to 18″
Starret Video Metrology +/-.0002 .0002 to 10″
Jones & Lamson Comparator +/-.0005 .001 to 18″
CAD/CAM Systems Compatibility
Solidworks Solid Models
Gibbs Cam Mill/Turn Solidworks Iges
Alibre Design CAD with Image Virtualization Reference Prints
Cimco DNC CNC Machine Communication
ERP Management System Quote to Delivery Quality
E2 Systems Shoptech MFG AS9100 and ISO9001 QMS
Value Added Services
Glass Bead Blasting Empire Pro Blast Unit
Heat Treating, Anodizing, LPI, Plating, Hard Coating, NADCAP

HOW WE DO IT

IF YOU HAVE QUESTIONS ABOUT YOUR MECHANICAL PARTS CONTACT US

Enough About Us…
